InertiaCube2+位置姿态追踪器

更新：2020-10-16 11:00:44 点击：

品牌： InterSense
型号： InertiaCube2

产品介绍

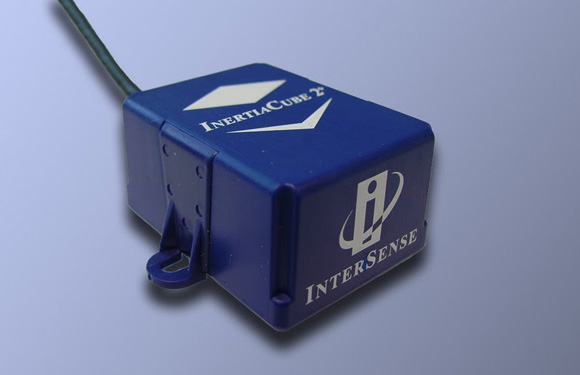

InertiaCube2+
The InertiaCube2+ is a multi-purpose sensor ideal for real-time applications in simulation & training, virtual & augmented reality, motion capture, and human movement analysis.

Integrating nine discreet miniature inertial sensing elements with advanced Kalman filtering algorithms, the InertiaCube2+ is a full 360° sourceless orientation sensor that delivers smooth, precise angular measurements.

InertiaCube2+

Key Features

■Sourceless 3DOF tracking with full 360° range
■Accuracy of 1° yaw, 0.4° pitch & roll
■180 Hz update rate
■4 ms of latency
■Adjustable output filters and rotational sensitivity
■In-situ and environmental Compass Calibration Tools for static magnetic field compensation
■Optional USB interface available

Degrees of Freedom	3 (Yaw, Pitch, and Roll)
Angular Range	Full 360° - All Axes
Maximum Angular Rate*	1200° per second
Minimum Angular Rate*	0° per second
Accuracy (RMS)*	1° in yaw, 0.4° in pitch & roll at 25°C
Angular Resolution*	0.01° RMS
Update Rate	180 Hz
Minimum Latency	2 ms for RS-232 (PC host OS dependent)
Prediction	Up to 50 milliseconds
Serial Rate	115.2 kbaud
Size	1.44 in. x 1.09 in. x 0.74 in. (36.6 mm x 27.7 mm x 18.8 mm)
Weight	0.60 ounces (17 grams)
Cable Length	15 ft. (4.572 m)
Power	6 VDC, 40 mA via AC adapter
Operating Temp. Range	0° to 50° C
O/S Compatibility	.dll for Windows 7/Vista/XP .so for Linux
Compliance	CE, UL, RoHS
