InertiaCube3位置跟踪器

更新：2020-10-16 11:19:13 点击：

品牌： InterSense
型号： InertiaCube3

产品介绍

InertiaCube3 replaces InertiaCube2

The InertiaCube3 is designed to meet the demands of a mobile, sourceless, 3-DOF sensor. With an aluminium package, broader operating temperature range and low power consumption, the InertiaCube3 is ideal for head or body tracking in mobile simulation, training and situational awareness applications.

Along with the InterSense software developers kit (SDK), the InertiaCube3 comes with heading calibration software providing compensation for static magnetic field distortions when deployed in adverse environments.

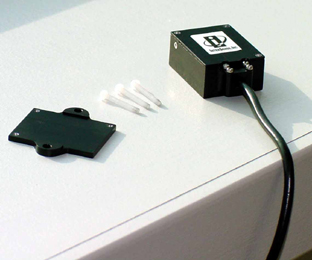

InertiaCube3

Features:

World’s smallest inertial orientation reference system
Full integration of nine sensing elements ensures maximum accuracy, sensitivity and stability
Sourceless tracking provides full 360o range and eliminates line-of-sightrestrictions
MagCal? software for in-situ static, magnetic field compensation
Monolithic electronic design for superior alignment accuracy
Connects directly to the PC’s RS-232 serial connector
Fast 115 kbaud rate and 180 Hertz update rate eliminates tracker inducedlag
Motion prediction, adjustable rotational sensitivity and control of output data filtering allows fine tuning for specific application
Windows 98, 2000, NT, XP, and CE dynamic link library available
Linux, IRIX and Mac OS X shared object libraries available
PC Software interfaces up to 32 InertiaCube3s to application
Windows control and connectivity software provides sensor configuration, network interface and joystick emulation
Optional USB Adapter provides direct connectivity to USB ports
Supports a standard I2C interface bus allowing custom wireless button, indicator or analog interfaces for OEM applications

Wireless InertiaCube3

The Wireless InertiaCube3 offers all the features of the standard InertiaCube3 with the freedom of wireless connectivity. Supports up to four InertiaCube3 Sensors per receiver. The InertiaCube3 Wireless Receiver interfaces via USB or RS-232 to the host computer.

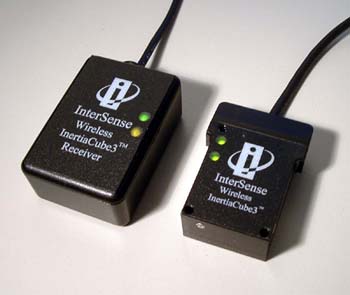

Wireless InertiaCube3

SPEC	InertiaCube3 (Serial)	Additional (stand-alone) wireless IC3 sensors	InertiaCube3 Wireless (USB or serial)
Update Rate (per sec)	180	180 (2 USB, 1 RS-232), 120 (4 USB)	180 (2 USB, 1 RS-232), 120 (4 USB)
Angular Resolution (° RMS)	0.03	0.03	0.03
Angular Range (°)	360,360,360	360,360,360	360,360,360
Angular Rate (max)	1200	1200	1200
Angular Rate (min)	0	0	0
Latency (ms)	2(RS-232),4(USB) (min. (OS dependant))	<6 (min. (OS dependant))	<6 (min. (OS dependant))
Dynamic Accuracy (° RMS)	1,0.25,0.25	1, 0.25, 0.25	1,0.25,0.25
Operating Temperature (min) (° C)	0	0	0
Operating Temperature (max) (° C)	70	70	70
Dimensions (mm)	26.2x39.2x14.8	31.3x43.2x14.8	31.3x43.2x14.8
Weight (g)	17	20	20
Operating Voltage (V)	6	9 (DC Battery, 8 hours)	9 (DC Battery, 8 hours)
Cable Length (M)	4.572-22.86	30 (wireless range)	30 (wireless range)
OS	Windows, Linux, Mac OS X	Windows, Linux, Mac OS X	Windows, Linux, Mac OS X
Hardware	PC,SGI,MAC	PC,SGI,MAC	PC,SGI,MAC
Software	SDK with full IS API	SDK with full IS API	SDK with full IS API
Interface	RS-232/USB Adapter	RS-232(1)/USB(4)	RS-232(1)/USB(4) (receiver)
Degrees of Freedom	3	3	3
